How keyboard input reaches a game that only understands a PS2 pad: Enter in menus, keys whose meaning depends on the screen, and the Numpad 1 caveman fix.

GoalThe retail THUG1 PC keyboard layout, working in menus, while skating and in Create-A-Park.

1Everything becomes a PS2 pad

The engine reads DUALSHOCK 2 style raw data: two bytes of active-low buttons, four stick bytes, twelve pressure bytes. Keyboard and controller both fill one sPadState, which is packed into that format.

excerptWn32/Code/Plat/Sys/SIO/p_siodev.cpp

// Buttons are active low
m_data.m_control_data[2] = 0xFF;
m_data.m_control_data[2] ^= pad.select ? (1 << 0) : 0;		// PS2 'Select'.
m_data.m_control_data[2] ^= pad.start ? (1 << 3) : 0;		// PS2 'Start'.
m_data.m_control_data[2] ^= pad.dpad_up ? (1 << 4) : 0;		// PS2 'DPad Up'.
...
m_data.m_control_data[3] ^= pad.triangle ? (1 << 4) : 0;	// PS2 'Triangle'.
m_data.m_control_data[3] ^= pad.cross ? (1 << 6) : 0;		// PS2 'X'.

// Xbox black & white buttons (bits 0 and 1)
m_data.m_control_data[20] = (pad.black ? (1 << 0) : 0) | (pad.white ? (1 << 1) : 0);

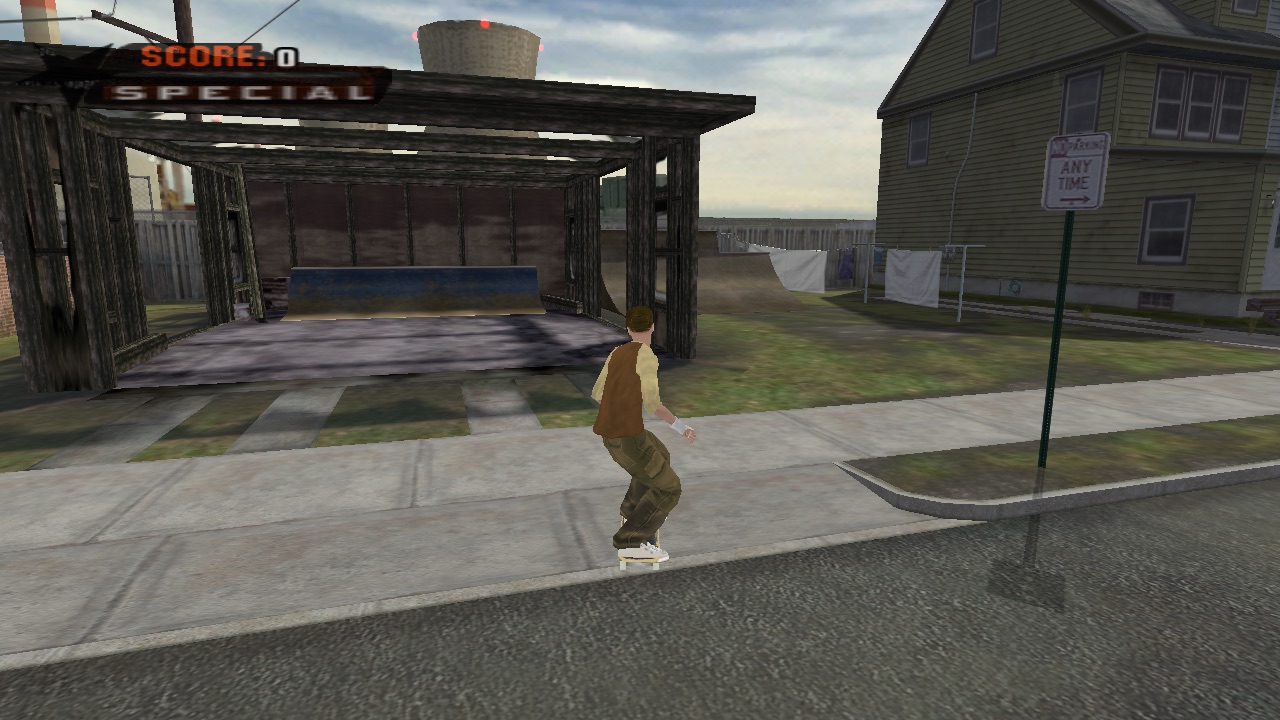

Keyboard only: W to push, Num 2 held for the crouch.

2Enter, Space, Escape: the other path

Menus also read a typed-character buffer (SIO::KeyboardRead), which is how Enter/Space choose and Escape backs out or pauses. SDL events feed it; mapping those keys to pad buttons as well would fire twice.

excerptWn32/Code/Plat/Sys/SIO/p_keyboard.cpp

case SDL_KEYDOWN:
{
	SDL_Keycode key = event.key.keysym.sym;
	bool repeat = event.key.repeat != 0;
	switch( key )
	{
		// Only let held-down keys repeat where that's useful
		case SDLK_BACKSPACE:	s_add_make( vKB_BACKSPACE ); break;
		case SDLK_UP:			s_add_make( vKB_UP ); break;
		case SDLK_RETURN:
		case SDLK_KP_ENTER:		if( !repeat ) s_add_make( vKB_ENTER ); break;
		case SDLK_ESCAPE:		if( !repeat ) s_add_make( vKB_ESCAPE ); break;
	}
}

3Sample the context when a key goes down

Enter toggles the camera while skating but means "place" in the park editor; Numpad 7 is nollie when skating and "lower" in the editor. The context is captured on key-down and kept until release, so a key held across a menu opening doesn't change meaning halfway.

excerptWn32/Code/Plat/Sys/SIO/p_siodev.cpp

static InputContext get_input_context( void )
{
	// Same checks the front end uses to decide whether Enter is "choose"
	if( s_object_exists( Crc::ConstCRC( "keyboard_anchor" )))
		return vCTX_TEXT_ENTRY;
	if( s_object_exists( Crc::ConstCRC( "current_menu_anchor" )) || s_object_exists( Crc::ConstCRC( "dialog_box_anchor" )))
		return vCTX_MENU;
	...
	if( p_editor && p_editor->EditingCustomPark())
		return vCTX_PARK_EDITOR;
	return vCTX_GAME;
}

struct sContextKey
{
	bool			held;
	bool			pressed;	// Went down this frame
	InputContext	context;	// Context at the time the key went down
};

4Fix the caveman

Numpad 1/3 pressed L2/R2, which is not how you get off the board on an Xbox build. They're the Xbox Black/White buttons, which live in a byte the PS2 format doesn't have, and only reach the game when the device is in digital mode.

diffWn32/Code/Plat/Sys/SIO/p_siodev.cpp · 3ca5eea

@@ -292,13 +292,17 @@ void Device::read_data ( void )
-	// Shoulders: Numpad 7/9 nollie+spin left / switch+spin right, Numpad 1/3 get off board.
+	// Shoulders, as on the Xbox pad (the game runs with its Xbox controls): Numpad 7/9 are the left/right
+	// triggers, which press L1+L2 (nollie + spin left) and R1+R2 (switch + spin right).
+	// Numpad 1/3 are Black/White, which get on and off the board (caveman).
 	bool l1 = held_outside_editor( kp7 ) || kp9.HeldIn( vCTX_PARK_EDITOR );	// Editor: raise
-	bool l2 = held_outside_editor( kp1 ) || kp7.HeldIn( vCTX_PARK_EDITOR );	// Editor: lower
+	bool l2 = held_outside_editor( kp7 ) || kp7.HeldIn( vCTX_PARK_EDITOR );	// Editor: lower
 	bool r1 = held_outside_editor( kp9 ) || kp3.HeldIn( vCTX_PARK_EDITOR );	// Editor: zoom out
-	bool r2 = held_outside_editor( kp3 ) || kp1.HeldIn( vCTX_PARK_EDITOR );	// Editor: zoom in
+	bool r2 = held_outside_editor( kp9 ) || kp1.HeldIn( vCTX_PARK_EDITOR );	// Editor: zoom in
+	bool black = held_outside_editor( kp1 );
+	bool white = held_outside_editor( kp3 );
@@ -351,8 +355,8 @@ void Device::read_data ( void )
-	// Xbox black & white buttons, unused on keyboard
-	m_data.m_control_data[20] = 0;
+	// Xbox black & white buttons (bits 0 and 1)
+	m_data.m_control_data[20] = (black ? (1 << 0) : 0) | (white ? (1 << 1) : 0);
@@ -665,6 +669,11 @@ Device::Device(int index, int port, int slot)
+	// Analog events are converted from the buttons (Inp::Data::ConvertDigitalToAnalog), which is also
+	// what turns the black & white button bits in m_control_data[20] into events. In analog mode
+	// m_control_data[4..] would be copied over the events as is, where [20] lands on a stick value instead.
+	m_data.m_button_mode = vDIGITAL;

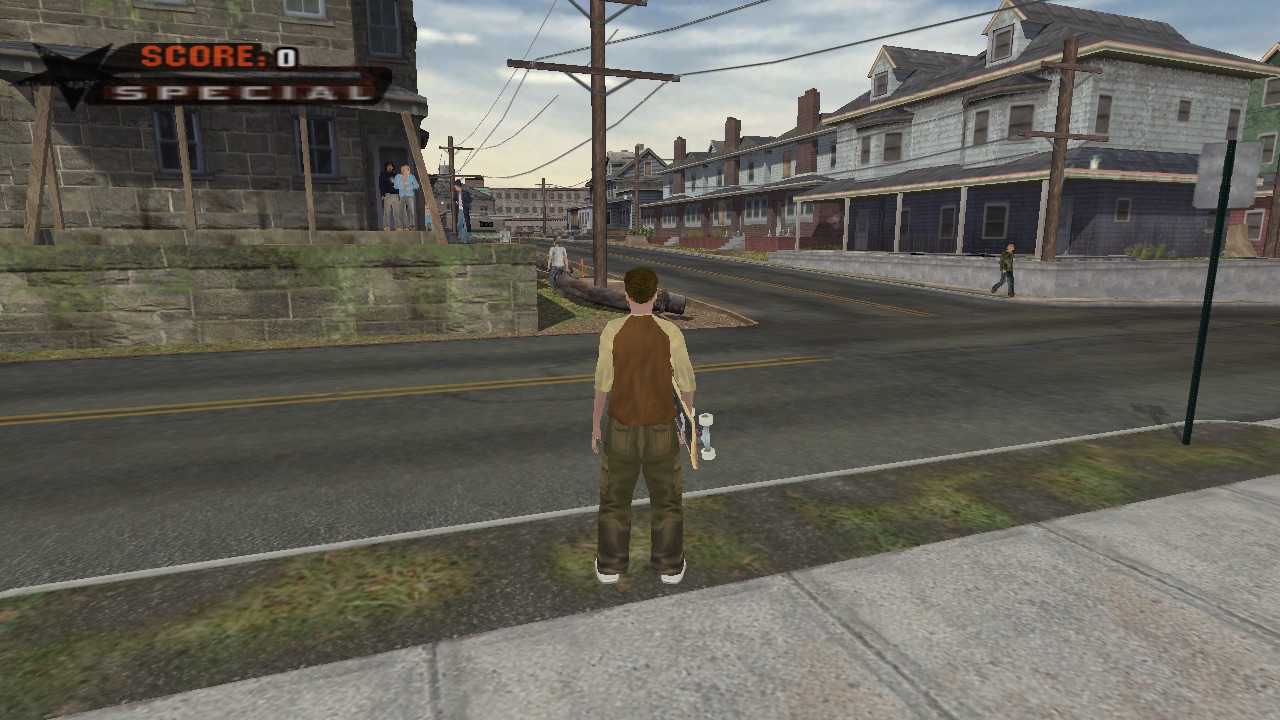

Numpad 1 after the fix: off the board, deck in hand.

switch_control.q: Xbox_Trigger = {{ Press , Black , 10 }}. Four words of script, one afternoon of reading pad bytes.

5The default layout

Key	Skating	Menus	Create-A-Park
W A S D	move	move	move selection
Numpad 2 / 4 / 6 / 8	ollie / flip / grab, talk / grind	accept / – / – / back	place / rotate / rotate / delete
Numpad 7 / 9	nollie, spin left / switch, spin right	–	lower / raise
Numpad 1 / 3	get off / back on board	–	zoom in / out
Z X C V	camera	–	camera
Enter / Escape	change view / pause	accept / back	place / pause

All of these can be changed now: Keyboard settings.
